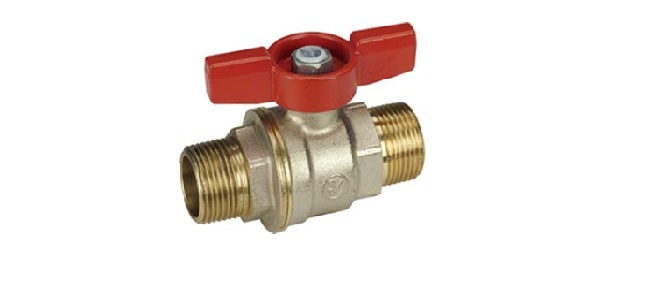

R913 DADO ball valve, male-male connections
DADO ball valve, with male-male threaded connections. Nickel plated brass finishing. Full port. Red T-handle (water use).
Specifications
DADO ball valve, with male-male threaded connections. Suitable for water for heating/cooling systems and not dangerous gas. Valve made of UNI EN 12165
CW617N nickel plated brass. Full port. Aluminium T-handle, red painted. Stem with double O-Ring. Nut with anti-corrosion coating, with guarantee seal and
hologram. Min. working temperature: -20 °C with 50 % glycol solutions. Max. working temperature with dry saturated steam: 185 °C with 1,05 MPa (10,5 bar). Max.
working pressure at 20 °C with water and not dangerous gas: 4,2 MPa (42 bar) for 3/8” - 1/2” - 3/4”, 3,5 MPa (35 bar) for 1” - 1 1/4”.
Technical data
Main features and materials
• Suitable for water for heating/cooling systems and not dangerous gas
• Full port
• Valve made of UNI EN 12165 CW617N nickel plated brass
• Stem with double O-Ring
• Nut with anti-corrosion coating, with guarantee seal and hologram
• Aluminium T-handle, red painted
• DADO ball
Field of applications
• Min. working temperature: -20 °C with 50 % glycol solutions
• Max. working temperature with dry saturated steam:
185 °C with 1,05 MPa (10,5 bar)
• Max. working pressure at 20 °C with water and not dangerous gas:
4,2 MPa (42 bar) for 3/8” – 1/2” – 3/4”
3,5 MPa (35 bar) for 1” – 1 1/4”
